I don't want to bore the sh1t out of you! But a problem shared etc

I don’t want to bore the sh1t out of you with all my constant questions on how to fix my pain in the arse ZX7R - but this is a bike site and we can all learn from this sh1t or at least find it interesting right?

Anyway - this question is about my junction box. :smiley:

I’ve got a starting problem with the kwak.

Ignition on, hit starter - nothing but a click coming from under the seat. Could be a load of things - safety switches etc.

This is the fun bit - a kwak forum says that if this happens the first thing to do is lift the seat and try punching the junction box with your fist.

So I did this and WTF it started! :w00t:

So I guess I’ve got a problem with the jbox.

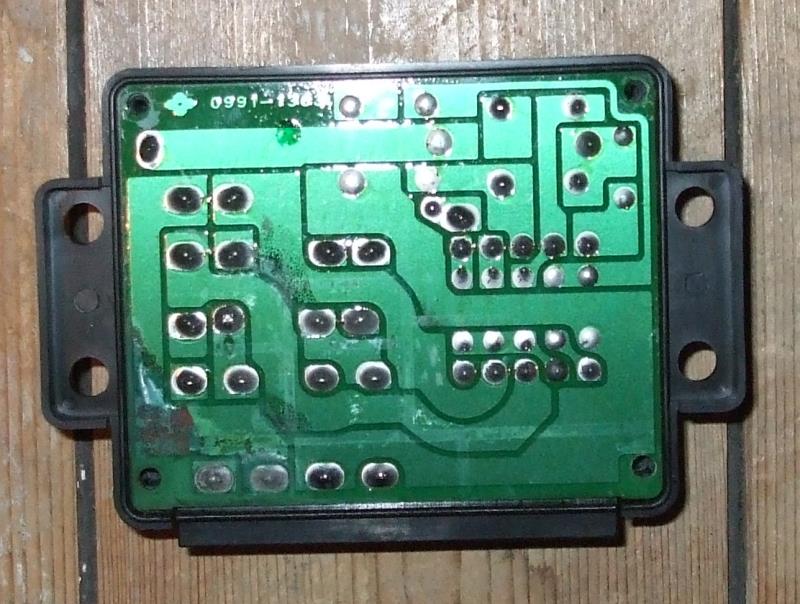

Anyway - I decide to take the thing apart to check for loose solders, connection etc - The screw on the bottom left hand corner of the jbox which secures the lid was furred up (from moisture) and was hard to unscrew - when I took the lid off I noticed that the circuit board and the solders in this bottom left hand corner were also dull and discoloured due to moisture getting into the box (all the other solders look ok).

I’ve just taken a look at the internal circuitry and terminal identification diagram in the Haynes and the dull discoloured solders sit right above (and are probably connected to) the terminals which are responsible for the starter circuit relay.

I think this is the problem - the solders connected to the starter circuit relay terminals have become degraded due to damp/moisture which is causing the starting problem.

I’ll try a replacement box off ebay.

A man after my own heart… when others are ringing the dealer to get a ludicrous repair quote, you’re tearing off ‘no consumer serviceable parts inside’ stickers with wild abandon. :smiley:
Its clearly got some moisture damage, fingers crossed the replacement does the trick. I’m optimistic :slight_smile:

Speak to Matt @ OMC!

He has a ZX7-RR that he has worked on extensively! He’s the man to ask.

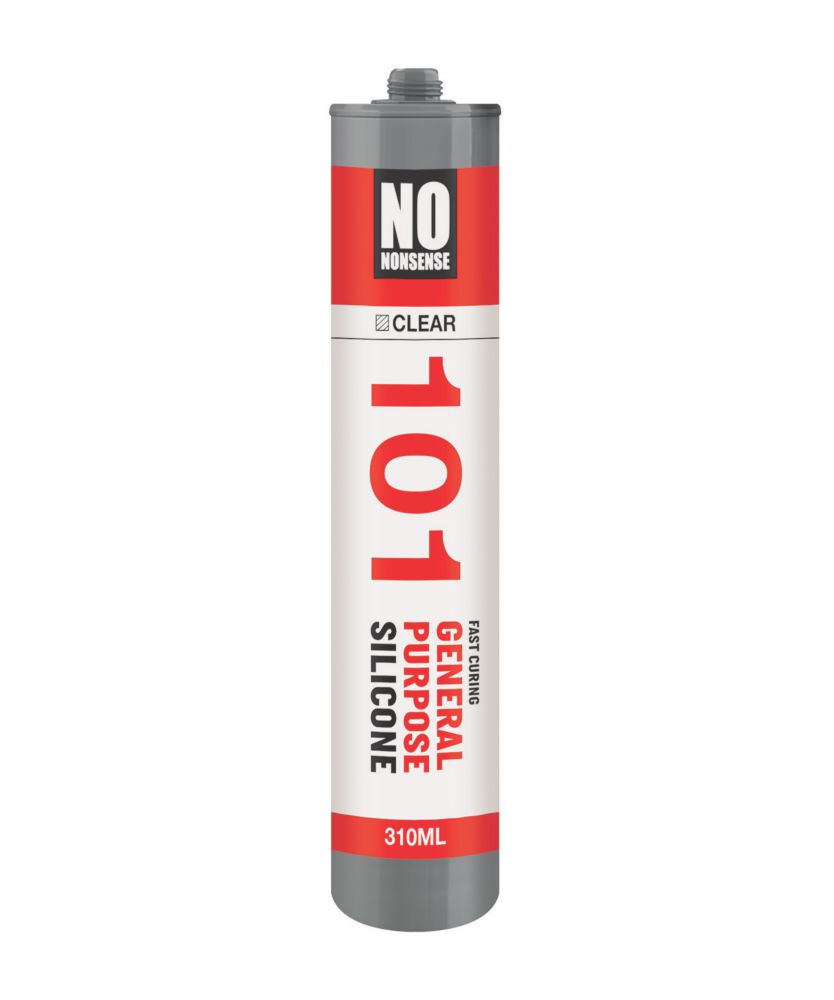

So far so good NJ, looks likely you have it sorted. When you put it back together use some silicone sealant to keep the woes of the weather out, this stuff will do the job

310ml. Quick-curing, acetoxy Silicone for a permanent watertight, flexible seal less than £3 at your local Screwfix

A translation

‘No Consumer Serviceable parts inside’ = ‘Full of cheap tricks and wide open spaces a 7 year old would understand but we’d rather sell you the whole barn for mega hard earned wedge’

lol, thanks Scorch! :smiley: - yeah - trying to sort out problems like these can take on an epic quality - it’s 11.30 on a Sunday night - multimeter in your left hand, Haynes in your right, laptop showing some garbled advice from a forum thread and your thinking - I don’t know what the f*ck I’m doing, I’m like a monkey in the film 2001 trying to fix a spaceship . . .

Then you get that eureka moment - suddenly all the accumulated information from forums, multimeter readings, Haynes schematic diagrams, and common sense comes together and you think you’ve cracked it - suddenly the world looks different - from a place of darkness and insanity you emerge into the light, suddenly life and the universe has meaning again :smiley:

The big factor as always is time - when you are on a learning curve like me it takes a lot of time (particularly with electrical components/circuits) poking around, doing research just to get a proper picture of what something does, how it can fail, and then actually establishing that it is the source of the problem.

Thanks mate - yes I’ve heard a lot about that place - will have to drop by some time. :slight_smile:

Thanks Art :slight_smile: - yes the silicone is a really good call - it can get hot and damp under the seat - and the moisture doesn’t get a chance to dissipate properly.

As you say - a lot of these parts are really expensive - and in these hard economic times it’s interesting the amount of people who are getting their soldering kits out and fixing circuit boards, fuel pumps etc themselves rather than buying expensive new parts or even going on to fleabay.

Ok - so I ordered a used junction box off Ebay and plugged it in.

And guess what? Yep - I’m back at square 1.

Hit the starter and exactly the same problem - nothing happens - except a click.

I then tapped the box and it fires.

The ‘new’ jbox looks in better nick than my previous one and I have no reason to think there is anything wrong with it (there was a blown fuse in it which I replaced but that doesn’t necessarily mean there is anything wrong with it right?)

So I guess the next step is to look at the starter relay.

I’ve looked in my Haynes and it says the starter relay should make a clicking sound - which it does - the Haynes says only test the starter relay if it doesn’t make the clicking sound - so before I go and test it/replace the relay it doesn’t actually sound like there is anything wrong with it.

I would be really grateful if anyone has any idea what the problem is.

All the wiring going into the junction box looks secure so I don’t think the tapping is fixing a loose connection or anything.

might be a broken wire going into the Jbox

Yeah - could be.

Just went out to it - and it started first time on the button three separate times.

WTF? Definitely some kind of intermittent failure going on.

dry solder joint?

Not sure really - perhaps the new box just needed waking into life?

It’s starting on the buttion now.

It’s working now, that’s the main thing. :smiley:

Yep it’s fine.

just so you know, this is an interesting post on a bikers forum. Keep em coming :smiley:

In the plant trade that is most definatley the type of fault that would be a " Leave it to develop ,we have fitters who will follow "

Don’t worry - the lengths of threads on fixing electrical/starting problems on ZX7Rs are legendary :crazy:

Seems to be fine now.
