brake upgrade on a k3/k4 gsxr 1000

Author Message
 Posted 13/01/2009 17:04:04
Pizza Delivery Rider
Pizza Delivery RiderPizza Delivery RiderPizza Delivery RiderPizza Delivery RiderPizza Delivery RiderPizza Delivery RiderPizza Delivery RiderPizza Delivery RiderPizza Delivery Rider

Group: Forum Members
Last Login: 30/05/2010 17:13:54
Posts: 91, Visits: 391
i have just upgraded the master cylinder on my K3 gixxer as the oe master cylinder was not a radial one and the calipers are, so i got a GSXR 600/750 K6 nissin radial master cylinder from a friend who had it floating around as a spare, i brought a lever, a brake light switch, bleed nipple and a hell adapter from ebay total cost £25,

now the lever has less travel feels firmer and of course looks tricker i had to move my gear indicator as the master cylinder hit it but that was easy just swoped it from the left to the right side of the clocks, the swap was really easy to do just removed the old master cylinder off the bar disconnected the light switch, took the feed pipe off, after placing a towl underneath it to catch any fluid but none came out removed the brake line from the master cylinder again nothing came out, then just connected up the new one bolted it on bleed it at the master cylinder then bleed the brake lines took about 20 mins to complete i thought i was going to hit loads of problems like the feed line/brake line at the wrong angle or to short but everything fitted perfectly. iknow this mod will work on the K4 1000 model as its the same as the K3 1000 may work on the K1/K2 models but i dont have one to compare also may work on the 600/750 but again i dont have to compare with




Post #490968
 Posted 14/01/2009 14:22:42
Bucking Follocks
Bucking FollocksBucking FollocksBucking FollocksBucking FollocksBucking FollocksBucking FollocksBucking FollocksBucking FollocksBucking Follocks

Group: Forum Members
Last Login: 15/10/2014 15:16:21
Posts: 8,919, Visits: 11,166
Good work that.


Hey...I now have a blog...For the IT geek in you

Follow me @theincredibleaf


A thief likes the look of your bike

You need...

* Almax Series III or IV chain
* Ground anchor
* Tracker UK Tracker


An alarm is useless and at some point will have you calling breakdown recovery.

Post #491505
 Posted 14/01/2009 14:28:09
Pizza Delivery Rider
Pizza Delivery RiderPizza Delivery RiderPizza Delivery RiderPizza Delivery RiderPizza Delivery RiderPizza Delivery RiderPizza Delivery RiderPizza Delivery RiderPizza Delivery Rider

Group: Forum Members
Last Login: 08/03/2011 06:43:12
Posts: 184, Visits: 838
If you feel you want more then try using the 04-06 Yamaha Calipers!!

Need a spacer - but they bolt straight on!!

Using a Brembo 19x20, braided lines, R1 Calipers and 320mm discs on mine!!

Endo Time? :P

Post #491509
 Posted 14/01/2009 19:27:18
Pizza Delivery Rider
Pizza Delivery RiderPizza Delivery RiderPizza Delivery RiderPizza Delivery RiderPizza Delivery RiderPizza Delivery RiderPizza Delivery RiderPizza Delivery RiderPizza Delivery Rider

Group: Forum Members
Last Login: 30/05/2010 17:13:54
Posts: 91, Visits: 391
StunTER (14/01/2009)
If you feel you want more then try using the 04-06 Yamaha Calipers!!

Need a spacer - but they bolt straight on!!

Using a Brembo 19x20, braided lines, R1 Calipers and 320mm discs on mine!!

Endo Time? :P

i was thinking of getting a set of k5 or later model calipers and disks but was unsure they would fit do you have a k3 stunter?? and what 320 mm disks you have on there?? and where did you get the spacer from for the yam calipers???

Post #491712
Adz
 Posted 15/01/2009 00:20:12
London Biker
London BikerLondon BikerLondon BikerLondon BikerLondon BikerLondon BikerLondon BikerLondon BikerLondon Biker

Group: Forum Members
Last Login: 15/10/2014 22:58:01
Posts: 2,620, Visits: 8,488

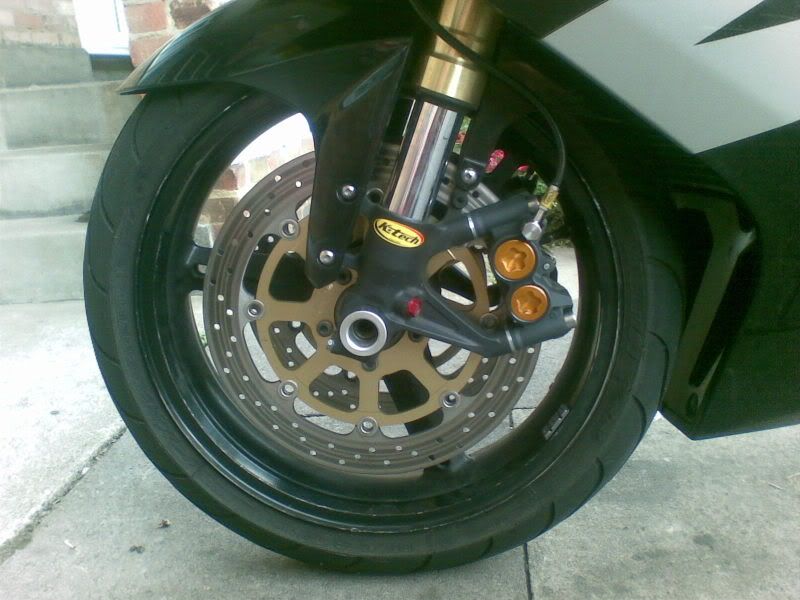

like so...



thats on the front of my k4 750, the wheel is the same as yours, the disc is 320mm from a K3 750,(k1/3 600/750,K1/2 100 and srad discs are the same)

the calipers are of an 05 R1 and theres a 5 mill spacer


http://www.admoto-care.co.uk//

Servicing and repairs, Batteries,chain and sprocket kits i have a van drop me a PM if you need anything moving

Post #491893
 Posted 15/01/2009 18:53:26
Pizza Delivery Rider
Pizza Delivery RiderPizza Delivery RiderPizza Delivery RiderPizza Delivery RiderPizza Delivery RiderPizza Delivery RiderPizza Delivery RiderPizza Delivery RiderPizza Delivery Rider

Group: Forum Members
Last Login: 30/05/2010 17:13:54
Posts: 91, Visits: 391
thanks ive been looking at what calipers and disks fit mine and the calipers look sweet:cool: now i know the srad disks fit i know a company that can supply me a sweet set of wavey ones for around the £130 mark, but at the moment the funds are low and the brakes are awesome with the new M/S fitted, i have a set of bendix pads to go in them as well so the mods wll have to wait a little while longer but cheers for the info, i would love a set of brembo monblocks from a 1098 but unless i rob a bank thats just a dream
Post #492227
Adz
 Posted 15/01/2009 18:55:12
London Biker
London BikerLondon BikerLondon BikerLondon BikerLondon BikerLondon BikerLondon BikerLondon BikerLondon Biker

Group: Forum Members
Last Login: 15/10/2014 22:58:01
Posts: 2,620, Visits: 8,488
1098 calipers will not fit, the centers are like 100mm? and jap bikes are 108.

R1 calipers are monoblock :)


http://www.admoto-care.co.uk//

Servicing and repairs, Batteries,chain and sprocket kits i have a van drop me a PM if you need anything moving

Post #492231
 Posted 21/01/2009 10:47:25
Pizza Delivery Rider
Pizza Delivery RiderPizza Delivery RiderPizza Delivery RiderPizza Delivery RiderPizza Delivery RiderPizza Delivery RiderPizza Delivery RiderPizza Delivery RiderPizza Delivery Rider

Group: Forum Members
Last Login: 08/03/2011 06:43:12
Posts: 184, Visits: 838
Gizza,

When you say K5 - be careful what engine size! AFAIK the K5+ 1000 runs a diffiernt bolt pattern so the discs wont fit! The K5 600/750 discs will fit but they are the same as what you have already!

The best bet on a budget is the R1 monoblocks - I've not tried the later K5+ radial calipers but have heard rave reviews about the R1 calipers.

I used washers on my bike - I had some spacers made up but they were way too big!! Normal washers and threadlock on the caliper bolts (I do check them after and during any hard ride - they haven't budged at all in months - and I havent been taking it easy...:Whistling:)

Mind you - the 19x20 Brembo is a bit stiff to use with these calipers - you radial MC will give a bit more feel...

:smooooth:

Post #495474
 Posted 04/08/2010 20:33:49
Learner
LearnerLearnerLearnerLearnerLearnerLearnerLearnerLearnerLearner

Group: Forum Members
Last Login: 18/08/2010 16:32:06
Posts: 1, Visits: 9
Hi newbie here on the forum I know this is an old thread but I'm trying to fit r1 brakes to my k4 750 gixxer .where can I get 320 mm discs that fit the bolt pattern on the wheel . I have the master cylinder , callipers and spacers just need discs ,and what about longer calliper bolts thanks
Post #724628
 Posted 05/08/2010 13:08:36
London Biker
London BikerLondon BikerLondon BikerLondon BikerLondon BikerLondon BikerLondon BikerLondon BikerLondon Biker

Group: Forum Members
Last Login: 02/08/2014 00:12:13
Posts: 3,942, Visits: 7,411
Try and PM Adz he's the one that did it above...

Ian - but most people call me E - so Elad...



Post #724853
